2-UL FM FIRE PUMP
• UL installed fire pump set includes diesel driven fire pumps
• Electric driven fire pump
• Electric driven jockey pump
• Electric motor control panel
• Diesel engine control panel and jockey control panel
• Flow meter, pressure gauges
• Flow 50 US GMP to 3000 US GPM
• Head 87 PSI to 323 PSI
• Centrifugal Fire Pumps, End Suction and Centrifugal Fire
Pumps: Split Case and Vertical Turbine Pump

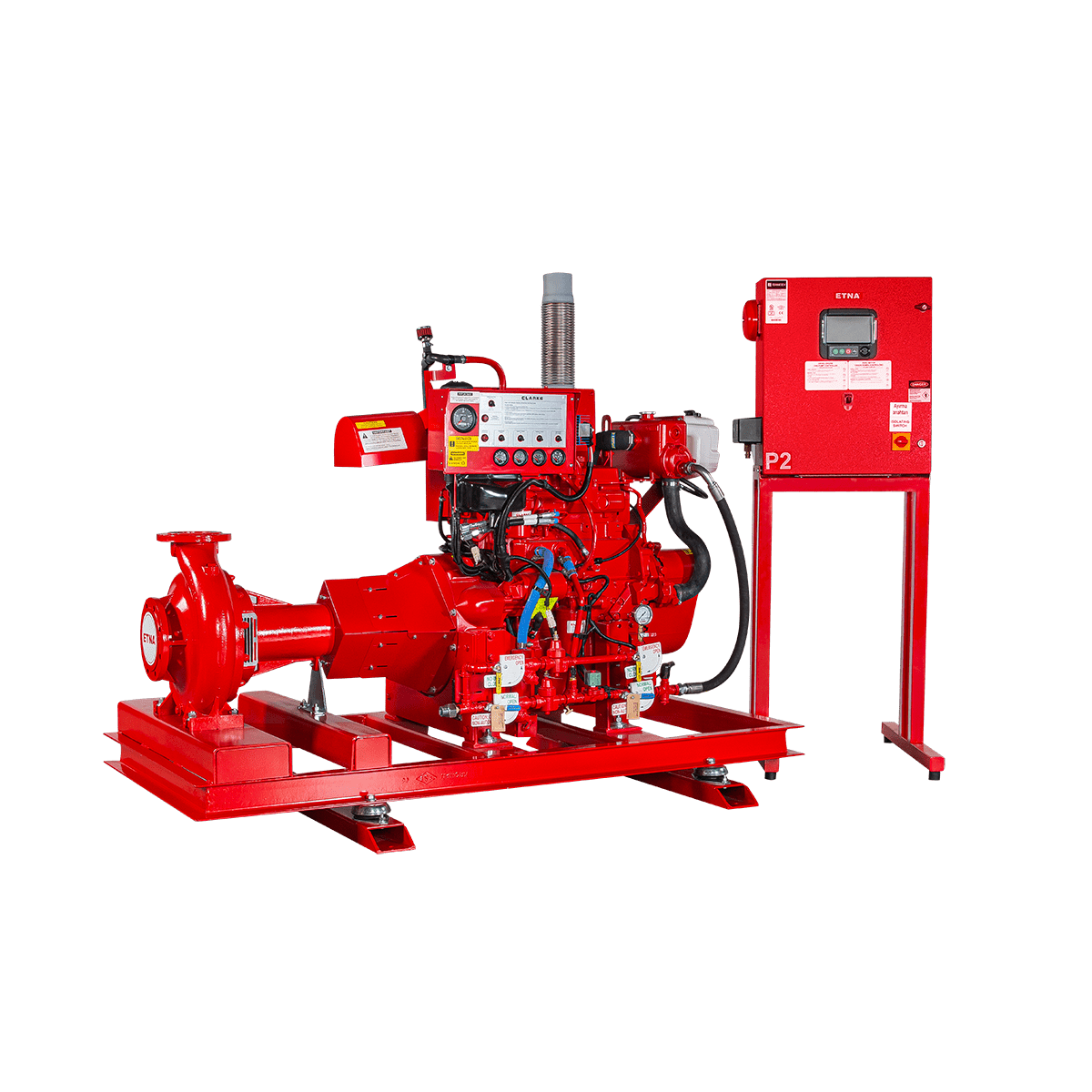

1. Fire Pumps – End Suction
End Suction Pumps are designed according to NFPA 20 for fire-fighting applications. The pump is designed with the latest technology and premium components for fast maintenance and absolute efficiency.

Performance Range:
• Capacity: From 50 GPM up to 1000 GPM
• Head: From 40 MTR up to 220 MTR

Features:
• Available in electric motor driven or engine driven configuration
• Dynamically balanced impellers
• Available in clockwise or counter-clockwise rotation to simplify pump room layout

Material Construction:
• Shaft: Stainless Steel
• Casing: Ductile Iron
• Impeller: Bronze
• Shaft Seal: Packing Gland – Immersion Graphite

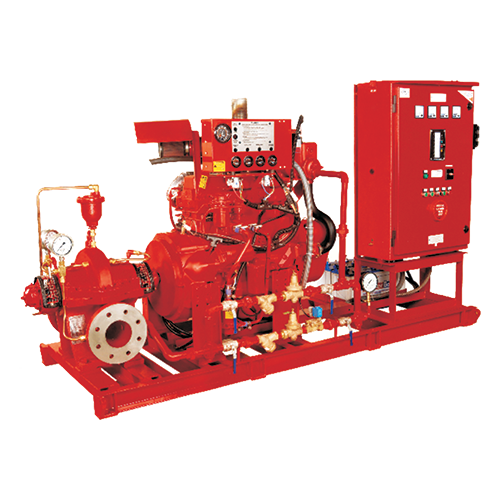

2. Fire Pumps - Horizontal Split Case
Split case pumps is a single stage, non-self-printing, centrifugal volate pump with radial suction and discharge port. This pump has a horizontal pump shaft with the impeller placed in the middle of the shaft and with self conained combination bearing housing and seal chamber on bot sides of the impeller. Without disturbing the motor or pipe-work, the split case construction enables the pump casing to be dis-mantled in the horinzontal plane along the drive shaft, Removal and dismantling of the internal pump part.

Feature
• In line pump
• Double Suction
• Low NPSH
• Low axial load on the shaft
• Double Volute
• Improve efficiency (Overall higher efficiency)
• Low radial load on the shaft
• Low axial and radial loads extends wear ring-seal and bearing life, minimize vibration and provides quit operation
• Easy service bearing and packing gland can be changed without removing the top casing half

Performance Range:
• Capacity: From 300 GPM up to 3000 GPM
• Head: From 40 MTR up to 220 MTR

Material Construction:
• Shaft: Stainless Steel
• Casing: Ductile Iron
• Impeller: Bronze
• Shaft Seal: Packing Gland D – Immersion Graphite Rope

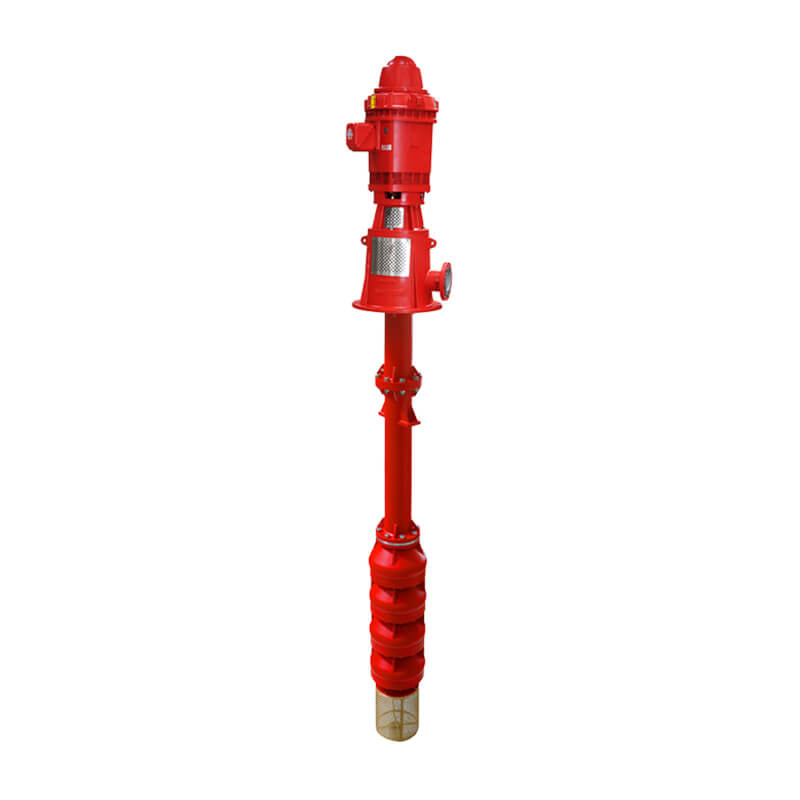

Fire Pumps Vertical Turbine
Vertical Turbine Centrifugal Pump is developed and fabricated by our company, according to NFPA 20.This pump is used for underground water sources where the water level is below the pump suction. its impeller remains submerged with the water tank at all times. Where the fire protection water source is located below ground or deck level, the best technical pumping solution is the vertical suspended multi stage turbine pump. with this type of unit the imellers are fully immeresed in the water maintaining prime at all times. The pumps are driven by vertical electric motors or by diesel engines through a right angle gearbox.

Features
• Performance and hydrostatics tests
• Materials of construction : cast iron, bronze fitted
• Sealing arrangement: packing with flushing
• Modular construction: assure complete flexibility in selecting a pump
• Pre-engineered standard cmoponents
• Space-saver design: requires minimum floor space
• Static suction lift: premissible bt NFPA 20 where water source is located below ground
• Open line shaft: water lubricated bowl and line-shaft bearings
• Stuffing Box (Gland) (Bronze) - to press the packing gland into the seal area through bolts
• Bolted bowl: bowls and suction bell are bolted together, allowing easier disassembly
• Dynamic balanced impellers: secured to the shaft with steel locking collets
• Discharge gauge connection

Performance Range:
• Capacity: From 250 GPM up to 5000 GPM
• Head: From 50 MTR up to 220 MTR

Materials Construction:
• Shaft: Stainless Steel
• Casing: Ductile Iron
• Impeller: Bronze

Fire Pump Ontrollers:
• Electric Pump Control
• Diesel Pump Control
• Jockey Pump Control
• Alarm Panel

All Fire Pump Controllers are factory assembled, wired, tested as a unit and comply to all requirements of the latest edition of NFPA-70 (National Electrical Code), Controllers are listed by underwriters laboratories Inc., in accordance with UL218, standards for the fire pump controllers, CSA and standard for industrial control equipment (CUL) and approved by factory mutual (FM) All controllers are Y2K compliant.

This component plays a vital role in fire pumps as it controls the entire system. It is selected as per customer choice, if any; otherwise it can be either TORNATECH, FIRETROL, HUBBLE LEXINGTON, or JOSLYN CLARKE.

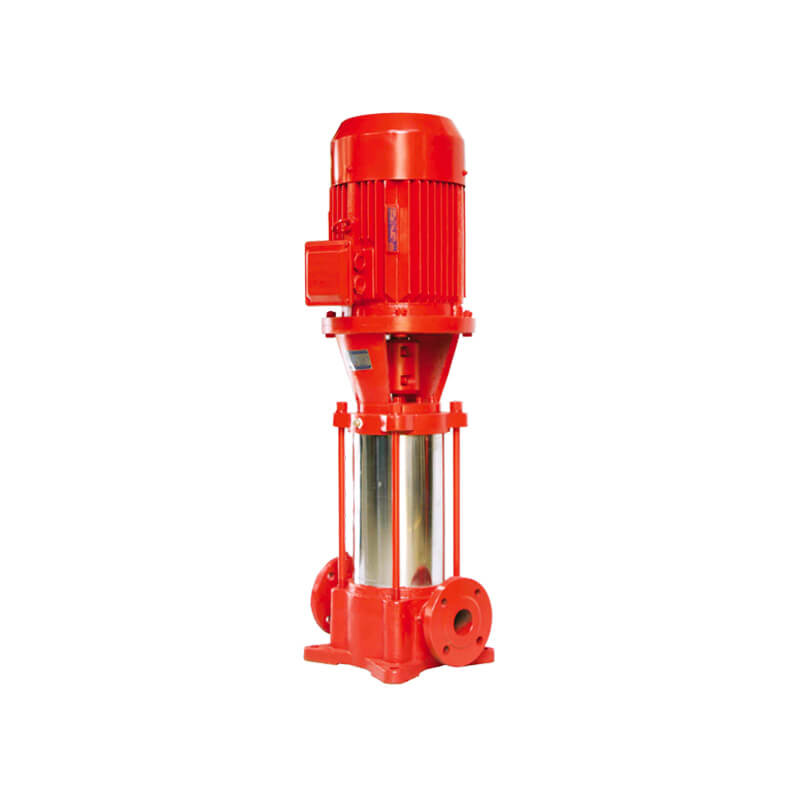

JOCKEY PUMPS
JOCKEY pumps are of the Vertical Multistage/Peripheral type and are used to compensate for small leakages in fire protection systems and automatically maintain the standby pressure.
